Triple Band. Single System.

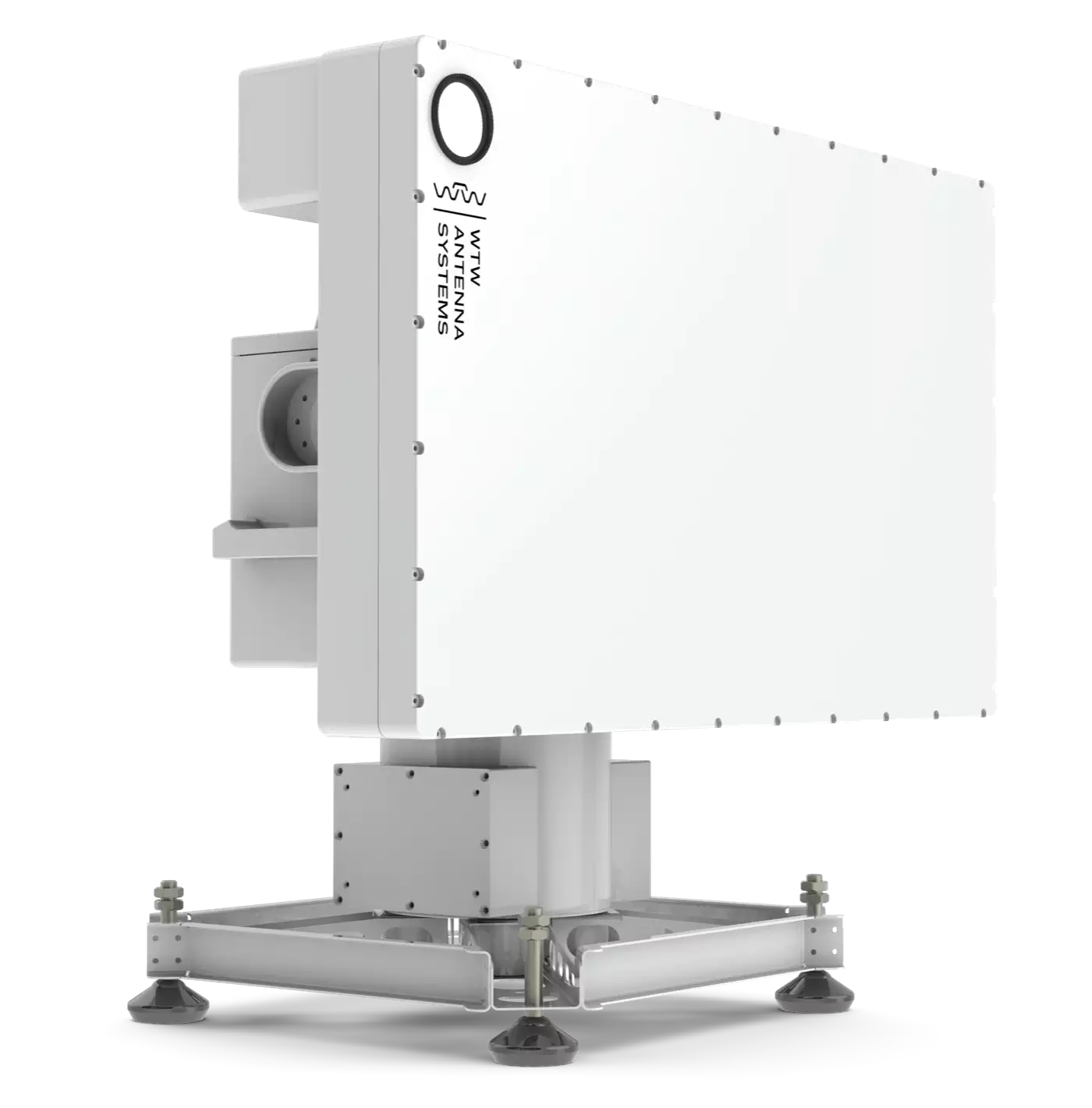

WTW-LSC-20 Dual and Tri-band Autotracking Antenna

The WTW-LSC-20 is a powerful dual- or tri-band autotracking antenna designed to support simultaneous L-, S-, and C-band telemetry operations. It delivers real-time performance with unmatched flexibility across various frequency ranges.

The WTW LSC-20 is built to meet complex telemetry requirements in multi-frequency environments. Whether operated in dual- or tri-band mode, it ensures continuous signal tracking with absolute precision. The modular system includes a high-gain antenna, intelligent control via GUI or joystick, and rugged construction for reliable deployment in any conditions. NATO-compatible and future-ready, it supports concurrent reception of multiple data links – ideal for mixed signal missions.

Usage areas

Discover where this product excels – from specialized industries to mission-critical applications.

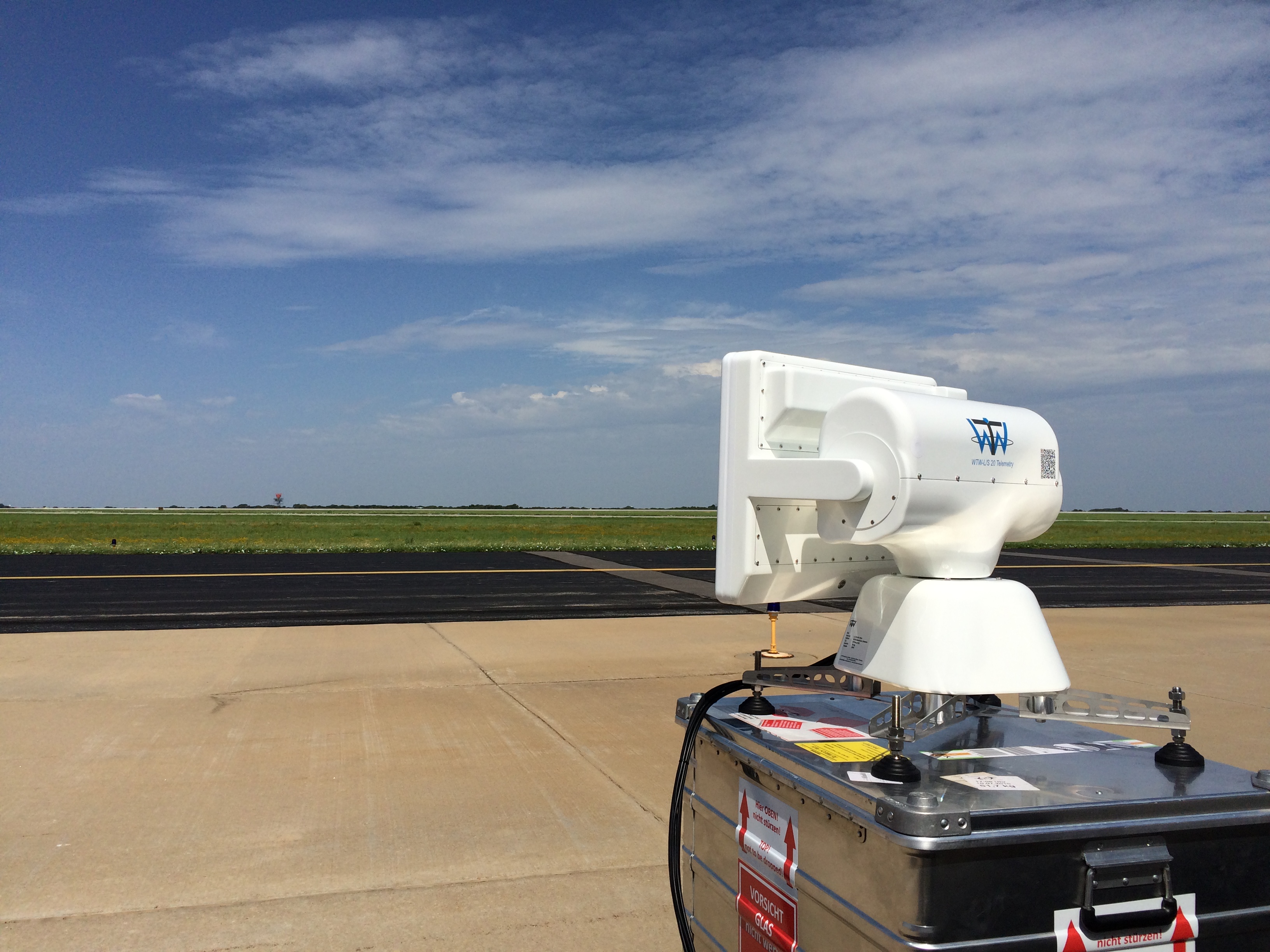

Mobile Control Centers

Integrated tracking for field operations

Flight Test Telemetry

Real-time data for aircraft and spacecraft performance trials

Long Range Data Links

Reliable links for extended drone missions

Secure Data Links

Encrypted telemetry for defense operations

Key features

The WTW-LSC-20 sets a new standard for versatile telemetry with dual- or tri-band operation across L-, S-, and C-band. Designed for complex multi-frequency missions, it ensures precise, real-time tracking and simultaneous signal reception in demanding environments. A rugged dual-axis pedestal with full azimuth, high-gain antenna, and IP66 protection make it reliable in the field, while Smart Connect GUI, browser-based control, and secure Ethernet or WiFi access provide intuitive operation for multiple users. NATO/STANAG compatibility and modular design guarantee future-ready performance for UAV, missile, and satellite test applications.

Dual- or tri-band (L/S/C) operation
Simultaneous multi-band signal reception
High-gain tracking across several frequency ranges
Precision dual-axis pedestal with full azimuth
Modular, rugged design for mobile use
GUI and joystick control options
NATO/STANAG compatible interfaces
IP66 protection
Made in Germany

Tech Specs WTW-LSC-20 Dual and Tri-band Autotracking Antenna

Gain	~15 dBi @ 1850 MHz; ~19 dBi @ 2350 MHz; ~19 dBi @ 4650 MHz; ~20 dBi @ 5150 MHz; ~19 dBi @ 7200 MHz (opt)
Frequency Ranges	L-Lower: 1435-1540 MHz; L-Upper: 1710-1850 MHz; S: 2200-2400 MHz; NATO E: 2185-2485 MHz; C1: 4400-4940 MHz; C2: 5091-5150 MHz; C2e: 5091-5250 MHz; Upper C: 5250-6000 MHz
Weight	~27 kg / 59 lbs (Dual-band LS20/C20); ~30 kg / 66 lbs (Tri-band LSC20/LSX20); ~30 kg / 66 lbs(Dual-band CX20)
Dimensions (EL=0°)	~70 x 28 x 60cm / 27.5" x 11" x 26" (WxDxH)
Polarisation	RHCP and LHCP
Mode	Manual, Program, Trajectory, GPS, Autotrack (monopulse); GPS position compensation; GPS Tracking Module (NMEA0183)
Filter	WTW bandpass filter (GUI selectable; optional external)
Torque (Az)	~50 Nm
Torque (El)	~50 Nm
Speed (Az)	max 60°/sec
Speed (El)	max 60°/sec
Backlash (Az)	max 2 arcmin
Backlash (El)	max 2 arcmin
Azimuth Range	unlimited (slipring)
Elevation Range	-5° to 90°
Calibration	Absolute encoders (both axes)
Operational Wind Speed	up to 100 km/h / 65 mph
Stowed Wind Speed	up to 160 Km7h / 100 mph
Optional	Control and RF over fiber optic
